Description
Specification:
1. Magnification: Continuous zoom 6.5X to 65X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Objective: 0.65-6.5X
5. Camera connector:1/2 CTV
6. Base size: 380x260mm
7. Accessories: 144 adjustable LED lights & dust proof Lens
LED Ring Light:
1. Input: AC 100~240V
2. Output: DC 12V
3. Max output: 4.5W-6W
4. LED: 144 LEDs
5. Illumination: Over 30000-35000Lux
6. Color Temperature: 6000-7000K
7. Light color: Black
8. Inside diameter: 60mm
9. Package: 144-LED Lamp Ring
Support parameters:
1. Column aperture: 32mm
2. Lens aperture: 76mm
3. Center distance: 155mm
4. Lifting range: 50mm

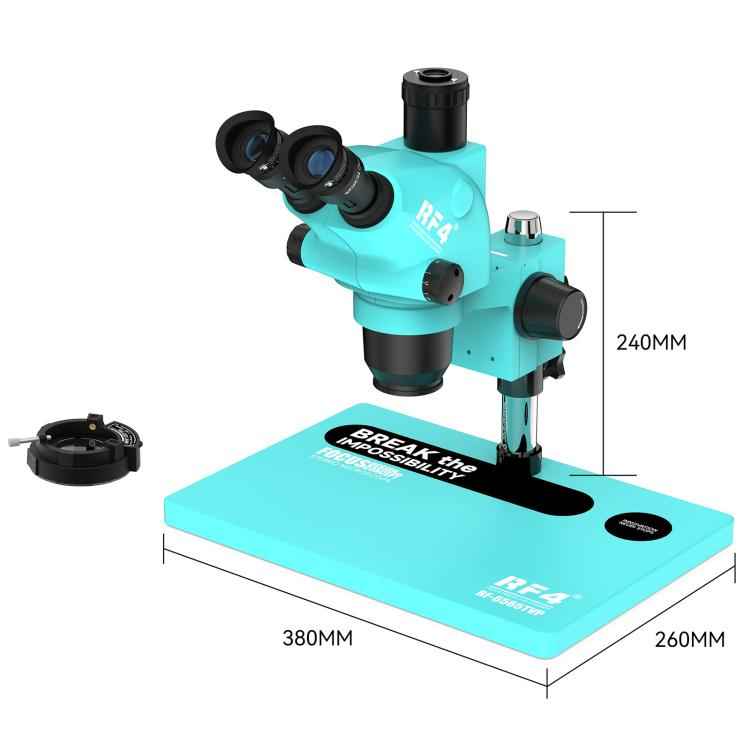

The base parameters:
1. Column height: 240mm
2. Diameter: 32mm
3. Base: 380x260mm
10X/22 Wide-angle Eyepieces:
1. Magnification: 10X
2. Wide Field Of View 22mm
3. Matching size: 30mm
0.5X CTV:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming
Package includes:
1. Microscope x 1
2. Column x 1
3. Base x 1
4. Synchronous Adapter x 1
5. Ring Light x 1
6. Dustproof Len x 1
1. Magnification: Continuous zoom 6.5X to 65X
2. Head: 45-degree inclined 360-degree swiveling trinocular
3. Eyepiece: WF10X/22MM
4. Objective: 0.65-6.5X
5. Camera connector:1/2 CTV
6. Base size: 380x260mm
7. Accessories: 144 adjustable LED lights & dust proof Lens
LED Ring Light:
1. Input: AC 100~240V
2. Output: DC 12V
3. Max output: 4.5W-6W
4. LED: 144 LEDs
5. Illumination: Over 30000-35000Lux
6. Color Temperature: 6000-7000K
7. Light color: Black
8. Inside diameter: 60mm
9. Package: 144-LED Lamp Ring
Support parameters:
1. Column aperture: 32mm
2. Lens aperture: 76mm
3. Center distance: 155mm
4. Lifting range: 50mm
The base parameters:
1. Column height: 240mm
2. Diameter: 32mm
3. Base: 380x260mm
10X/22 Wide-angle Eyepieces:
1. Magnification: 10X
2. Wide Field Of View 22mm
3. Matching size: 30mm
0.5X CTV:
1. The material is all metal, the black part is aluminum alloy, and the silver part is a copper chrome-plated bayonet
2. The adapter ring can use LCD to focus, this kind of focus method is manual focus
3. The adapter has a transparent mirror inside, which can help the microscope display and the other display achieve synchronous zooming
Package includes:
1. Microscope x 1
2. Column x 1
3. Base x 1
4. Synchronous Adapter x 1
5. Ring Light x 1
6. Dustproof Len x 1
